0~10Mbps 2X5 SFF TTL SM Transceiver Module
Description
0~10Mbps 2X5 SFF TTL SM Transceiver Module
Product Description
FLAF-1300-20_40xx series of transceiver modules are the perfect solution for Low-speed communication networks.FLAF-1300-20_40xx Small Form Factor (SFF) transceivers comply with the 2×5 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA). The transceivers are RoHS compliant and lead-free per Directive 2002/95/EC5.FLAF-1300-20_40xx SFF transceivers support data rates up to 10Mbps.FLAF-1300-20_40xx SFF module has been designed to provide good immunity to RF electromagnetic fields and excellent EMC/EMI performance.
Product Features
● 1310nm wavelength Laser Transmitter
● Up to 40Km on 9/125μm SMF
● Single 3.3V power supply
● Standard 2×5 pin footprint (MSA Compliant)
● Duplex LC connector
● TTL Signal Input / Output
● TTL Signal Detect
● Low power dissipation
● Compliant with Small Form Factor (SFF) Transceivers Multi-Sourcing Agreement (MSA)
● Operating case temperature range(Standard level :
0°C to +70℃) or (Industrial level: -40°C to +85°C)
Application
● RS232/RS485/RS422 receptacle fiber transmission
● Fiber System

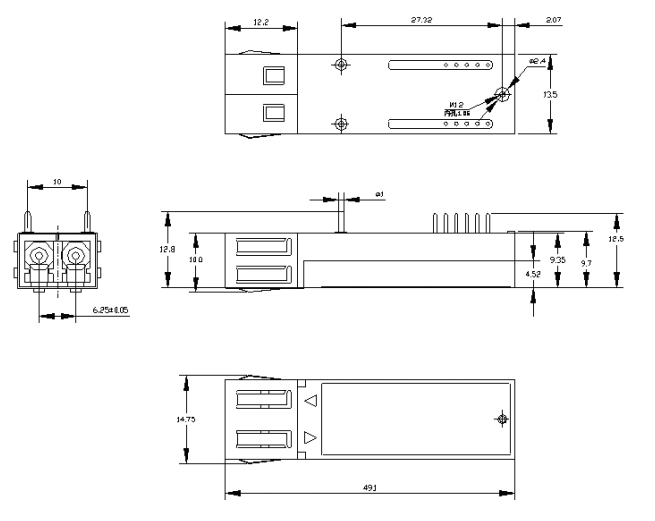

Mechanical Specifications
Ordering information
|
Part Number |
Product Description |
|
FLAF-1300-20 |
SFF2x5-SM1310-0~10Mbps-20km without TDIS funcation, 0ºC ~ +70ºC |
|
FLAF-1300-20I |
SFF2x5-SM1310-0~10Mbps-20km without TDIS funcation, -40 to +85°C |
|
FLAF-1300-40 |
SFF2x5-SM1310-0~10Mbps-40km without TDIS funcation, 0ºC ~ +70ºC |
|
FLAF-1300-40I |
SFF2x5-SM1310-0~10Mbps-40km without TDIS funcation, -40 to +85°C |
|
|
|
|
|
|
|
FLAF-1300-20-D |
SFF2x5-SM1310-0~10Mbps-20km with TDIS funcation, 0ºC ~ +70ºC |
|
FLAF-1300-20I-D |
SFF2x5-SM1310-0~10Mbps-20km with TDIS funcation, -40 to +85°C |
|
FLAF-1300-40-D |
SFF2x5-SM1310-0~10Mbps-40km with TDIS funcation, 0ºC ~ +70ºC |
|
FLAF-1300-40I-D |
SFF2x5-SM1310-0~10Mbps-40km with TDIS funcation, -40 to +85°C |
注：本產品有全國產化型號可選
本產品為FTAF系列，僅展示部分參數，如有需要，請聯系我們。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
